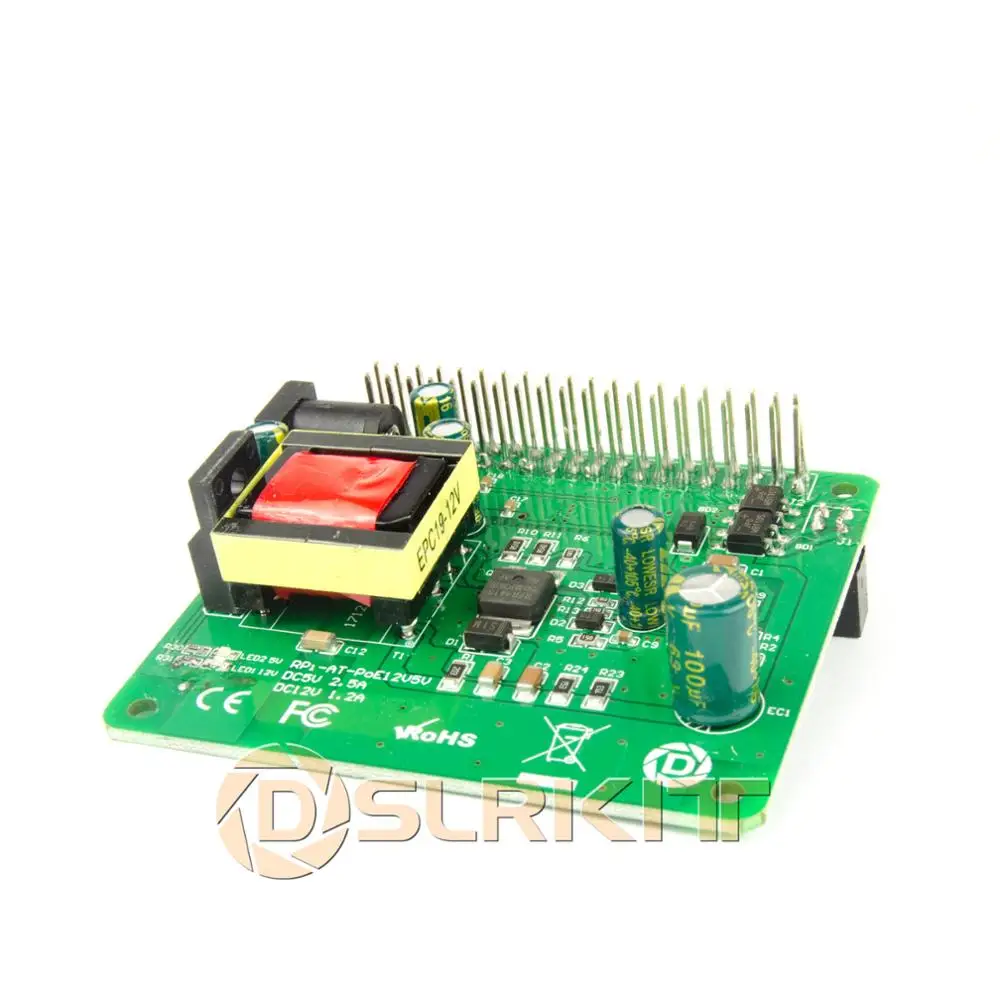

DSLRKIT 5V 12V PoE HAT Raspberry Pi 4 4B 3B+ 3B Plus 3.5in Hard Disk Drive LED 26Watt
 |
| DSLRKIT 5V 12V PoE HAT Raspberry Pi 4 4B 3B+ 3B Plus 3.5in Hard Disk Drive LED 26Watt |
| Name | Details |
|---|---|
| Buy now just | |
| Discount | |
| Product id | 32971799200 |
| Vendor | DSLRKIT Photography and Network Equipment Online Store |
| Category | Computer & Office - Demo Board & Accessories |
Description :
10/100mbps 48V 120W 9 Ports Passive PoE Switch: https://www.aliexpress.com/store/product/DSLRKIT-48V-120W-9-Ports-8-PoE-Injector-Power-Over-Ethernet-Switch-4-5-7-8/100107_32605755979.html?spm=2114.12010615.8148356.1.2ff844f0asDIdU
10/100mbps 48V 72W 5 Ports Passive PoE Switch: https://www.aliexpress.com/store/product/DSLRKIT-48V-96W-5-Ports-4-PoE-Injector-Power-Over-Ethernet-Switch-4-5-7-8/100107_32603806552.html?spm=2114.12010615.8148356.5.3662807fmv66na
250meter 10/100mbps 52V 120W 10 Ports Passive PoE Switch(Gigabit UpLink): https://www.aliexpress.com/store/product/DSLRKIT-2-Gigabit-8-PoE-Switch-Injector-52V-2-3A-120W-Ethernet-1000Mbps-250meter/100107_32882702548.html?spm=2114.12010615.8148356.1.246f70e8RdXJBh
250meter 10/100mbps 52V 120W 10 Ports Passive PoE Switch: https://www.aliexpress.com/store/product/DSLRKIT-250M-10-Ports-8-PoE-Switch-Injector-Power-Over-Ethernet-52V-120W-max140W-52V-2/100107_32819946440.html?spm=2114.12010615.8148356.1.99eb2a8bN6dYHW
250meter 10/100mbps 52V 75W 6 Ports Passive PoE Switch: https://www.aliexpress.com/store/product/DSLRKIT-250M-6-Ports-4-PoE-Switch-Injector-Power-Over-Ethernet-75W-max-90W-with-52V/100107_32850648273.html?spm=2114.12010615.8148356.3.54a37709S9LVMV
48V 0.5A Passive PoE injector(10/100Mbps): https://www.aliexpress.com/store/product/48V-0-5A-PoE-Injector-Power-Over-Ethernet-Adapter-for-Wireless-Access-Point-AP/100107_1479636675.html?spm=2114.12010615.8148356.3.56797388FkpPXp
Compatible with IEEE 802.3af / 802.3at standard POE switches (secure power supply):
Compatible with Non-standard 48V~52V Passive PoE switches and PoE injector:
Cost-effective choice:
Gigabit 48V 120W 8 Ports 7 PoE Injector PoE Switch: https://www.aliexpress.com/store/product/ALL-Gigabit-48V-120W-8-Ports-7-PoE-Injector-Power-Over-Ethernet-Switch-4-5-7/100107_32597358015.html?spm=2114.12010615.8148356.1.3e072009mwe7bh
Gigabit 48V PoE Injector Adapter https://www.aliexpress.com/store/product/Gigabit-48V-PoE-Injector-Adapter-Power-Over-Ethernet-802-3at-af-UBNT-AP-1000Mbps/100107_32967457473.html?spm=2114.12010615.8148356.1.3b5d3957qWw22R
Item Included:
Output power Max.26Watt (DC5V+DC12V) when used with the DSLRKIT Non-standard 48V~52V Passive PoE switches (or 48V~52V Passive PoE injector)
Plastic fixed column x4
RPi-AT-PoE12V5V PoE HAT x1 5.5mm*2.1mm male to male DC Power Cable x1 DC 5.5*2.1mm Female to 3.5*1.35mm Male Plug Adapter x1
Specification:
This is a 5V+12V dual output PoE HAT for Raspberry Pi 4B and 3B+, with a maximum output power of 26Watt when combined with 802.3at standard PoE switch (or 48V~57V Passive PoE switch/injector). According to the adaptive current output of devices requirements,it can be :(Typical:12V 0.9A+DC5V 3A), (12V1.1A 5V2.5A), (12v1.3a 5V2A) or (12V2.2A 5V0A)... Depends on your devices requirement. This POE HAT can power Raspberry Pi 3B+ as well as another 12V device, such as a 12V LCD screen or a 3.5in USB hard drive, as long as the power of this 12V device is not high enough to affect Raspberry Pi. But the premise is that you need to use a POE switch that supports IEEE802.3AT. When using the 802.3af standard POE switch,the maximum output power is about 14Watt, such as:(5V2.5A+12V0A),(5V2A+12V0.3A),(5V1.5A+12V0.5A) or (5V1A+12V0.75A). the maximum output power is only 12.5Watt If only output 5V. After testing,it can not be connected to the 3.5in USB hard drive when working with 802.3af standard POE switch,It will cause the POE switch to cut off the power output due to overload. However, the external 12V LCD screen seems to work normally. For example, the 13in LCD screen on the item picture, the power requirement on this LCD screen manual is 12V1A (for reference only, some LCD screens may consume more power). In addition, the official website FAQs mentions that the Typical bare-board active current consumption of Raspberry Pi 3 Model B+ is 0.5a (2.5watt). However, it is recommended to reserve at least 1A(5watt) for Raspberry Pi when there is no external devices (usb,camera,spi, etc.). Since the system consumes a lot of power when booting, Max. 0.75A(3.75watt) when referring to boot in FAQs.
Best Price Comparison With DSLRKIT 5V 12V PoE HAT Raspberry Pi 4 4B 3B+ 3B Plus 3.5in Hard Disk Drive LED 26Watt
DSLRKIT Raspberry Pi 4 4B Active PoE Splitter USB TYPE C 5V Power Over Ethernet 802.3af
Buy Now On Aliexpress
Gigabit Raspberry Pi 4 4B Active PoE Splitter USB TYPE C 5V Power Over Ethernet
Buy Now On Aliexpress
DSLRKIT Gigabit Active PoE Splitter 5V Micro USB Jetson Nano Raspberry Pi 3B+ 3B Plus
Buy Now On Aliexpress
Gigabit 802.3at 24Watt Active PoE Splitter 48V to 12V 2A Power Over Ethernet
Buy Now On Aliexpress
DSLRKIT Gigabit Raspberry Pi 4 4B 3B+ 3B Plus PoE Kit (HAT+ Injector) Power Over Ethernet
Buy Now On Aliexpress

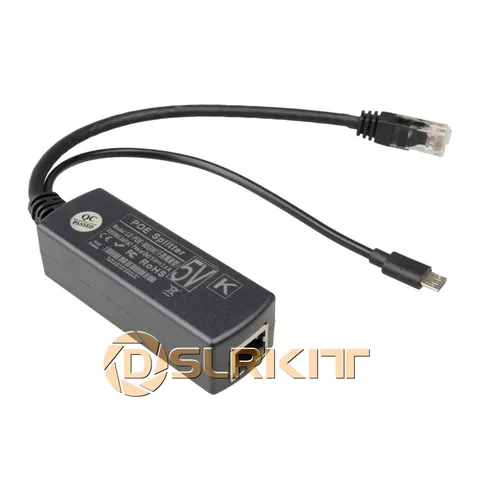

Active PoE Splitter Power Over Ethernet 48V to 5V 2.4A Micro USB 4 Raspberry Pi
